Cardan Shaft Parts Breakdown: Components & Functionality

Introduction:

Have you ever wondered how a car’s engine power reaches the wheels, or how heavy machinery transfers torque across misaligned components? The answer lies in a critical piece of engineering called the Cardan shaft, also known as a propeller shaft or drive shaft. These shafts are indispensable in industries like automotive, agriculture, and manufacturing, where they transmit torque from the engine or gearbox to wheels or other driven parts. Understanding the Cardan shaft parts breakdown is essential for anyone involved in designing, maintaining, or operating such systems. In this comprehensive guide, we’ll explore each component of a Cardan shaft, its function, and how they work together to ensure efficient power transmission.

Cardan Shaft Parts Breakdown: Components & Functionality:

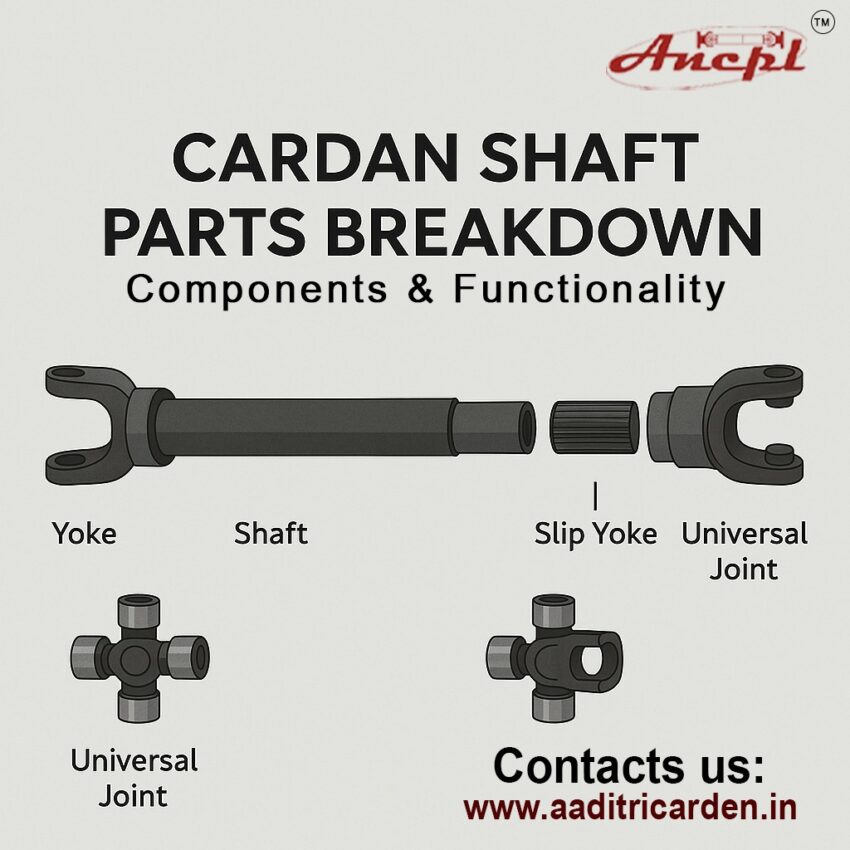

A Cardan shaft is a complex assembly of components, each designed to perform a specific task. Let’s dive into the Cardan shaft parts breakdown to understand these parts and their roles.

1. Universal Joints (U-Joints):

Kicking off our Cardan shaft parts breakdown, the universal joint (U-joint) is the heart of the system. It consists of a cross-shaped member, often called the cross or spider, and four needle bearings that allow the cross to rotate within the yokes. The primary function of the U-joint is to transmit rotational motion between two shafts that are not aligned, accommodating angular misalignment. This is crucial in vehicles where suspension movement causes the angle between the transmission and axle to shift.

Imagine trying to connect two straws at an angle without them bending or breaking—that’s what a U-joint does, but with much higher stakes and heavier loads. According to a study, “Analysis of Cardan Shaft Defects and Ways to Restore Them” Analysis of Cardan Shaft Defects, the cross in the U-joint should operate within an angle of inclination not exceeding 20 degrees to ensure smooth performance.

2. Yokes:

Continuing our Cardan shaft parts breakdown, yokes are fork-like structures that connect the universal joints to the shaft tubes and to the driving or driven components. There are two main types: half yokes, typically used at the shaft’s ends, and full yokes, which may be used in intermediate positions or specific designs. Yokes securely hold the U-joint in place and transmit torque between the shaft and the joint.

Think of yokes as the sturdy arms that hold everything together, ensuring the power flows without interruption. They must be robust to handle high torque loads without deforming, as noted in research on Cardan shaft design Design and Optimization of Cardan Shafts.

3. Shaft Tube (Central Shaft):

An essential part of the Cardan shaft parts breakdown is the shaft tube, also known as the central shaft. This hollow pipe, typically made from strong metal alloys like tempered or case-hardened steel, is the backbone of the Cardan shaft. It transmits torque from the gearbox to the drive axle, often under demanding conditions like off-road driving or heavy industrial use. The hollow design reduces weight while maintaining strength, improving efficiency.

Some shaft tubes include extension pipes or telescopic sections to adjust length, accommodating changes in distance between components, such as in vehicles with independent suspension. This adaptability is key to maintaining performance across varying conditions.

4. Flanges:

In the Cardan shaft parts breakdown, flanges are critical for connecting the shaft to other drivetrain components, such as the gearbox, transfer case, or differential. These flat, circular components with bolt holes provide a secure, rigid connection to ensure torque is transmitted without slippage. Flanges may include splines or other engagement mechanisms for added security, depending on the application.

Flanges are like the handshake between the Cardan shaft and the rest of the machine—firm and reliable, ensuring power gets where it needs to go.

5. Splined Shaft:

The splined shaft is another vital component in our Cardan shaft parts breakdown. Featuring ridges or teeth along its length, it engages with corresponding splines in other components, such as the gearbox output shaft or axle. This design allows axial movement while transmitting torque, accommodating changes in length due to suspension travel or thermal expansion.

In many Cardan shafts, the splined shaft is integrated with the sliding fork, which we’ll explore next, making it essential for dynamic applications like vehicles.

6. Sliding Fork:

As part of the Cardan shaft parts breakdown, the sliding fork is attached to the central shaft and enables the shaft to telescope, adjusting its length as needed. This is particularly important in rear-wheel-drive vehicles, where suspension movement changes the distance between the rear axle and gearbox. The sliding fork ensures that universal joints maintain optimal angles, reducing wear and ensuring smooth operation.

It’s like a sliding door that adjusts to fit the space, keeping everything aligned and functional.

7. Intermediate Fork:

In Cardan shafts with an intermediate bearing, the intermediate fork connects the central shaft to the intermediate shaft. It facilitates torque transmission through the bearing and maintains shaft alignment, ensuring efficient power transfer. This component is crucial in longer shafts where additional support is needed to prevent sagging or misalignment.

8. Center Bearing (Intermediate Bearing):

For longer Cardan shafts, a center bearing, or intermediate bearing, is included to support the shaft and reduce vibrations. Mounted on the vehicle’s chassis or frame, it allows the shaft to rotate while keeping it centered. The center bearing assembly typically includes the bearing itself, a boot to protect against contaminants, a clamping ring to secure the boot, and grease for lubrication.

Regular maintenance of the center bearing is critical, as it compensates for vibrations and prevents premature wear, as highlighted in resources from MEYLE Cardan Shaft Repair Kits.

9. Elastic Coupling:

Some Cardan shafts feature an elastic coupling, often made of rubber or other resilient materials, to dampen vibrations and absorb shocks. This component reduces noise and extends the lifespan of the shaft and its parts, making it particularly valuable in applications with high vibration, such as agricultural machinery.

How to Select the Best Cardan Shaft Coupling for Your Machinery

Why This Breakdown Matters: Real-World Impact

Understanding the Cardan shaft parts breakdown isn’t just technical curiosity—it’s practical:

• Failure Prevention: Spot wear early (e.g., play in yokes, rust on splines).
• Efficiency Boost: Misaligned shafts waste energy. Proper maintenance improves fuel efficiency by 2–5% (SAE International data).
• Cost Savings: Replacing a ₹500 bearing beats a ₹50,000 shaft assembly!

Keeping It Running: Pro Maintenance Tips

• Lubricate Religiously: Hit cross bearings and splines every 5,000 km or per OEM guidelines.
• Balance Checks: Vibrations? Get shafts dynamically balanced. Unbalanced shafts increase stress by 200% (Studies in Journal of Mechanical Engineering Research).
• Inspect for Damage: Look for dents, rust, or loose bolts.
• Alignment Matters: Ensure yokes are phased correctly (parallel orientation).

Conclusion:

Each component in the Cardan shaft parts breakdown plays a vital role in ensuring efficient and reliable power transmission. From universal joints that handle angular misalignment to elastic couplings that smooth out vibrations, every part must be carefully designed and maintained to prevent failures and optimize performance. Understanding these components empowers engineers, mechanics, and enthusiasts to keep Cardan shafts in top condition, whether in a car, a tractor, or an industrial machine.

For deeper insights, explore the research paper “Analysis of Cardan Shaft Defects and Ways to Restore Them” Analysis of Cardan Shaft Defects for details on common issues and repair methods. Additionally, “design and optimization of automotive cardan shafts for industrial applications with enhanced performance and durability” Design and Optimization of Cardan Shafts offers valuable information on material selection and design improvements.
